Design the tube mill roll tooling for tube mill

We manufacturer the tube and pipe mills and roll tooling for the tube, pipe, and roll forming industries.

With strong technical support from our team,

We design the tube mill roll tooling mould set for your tube mill line.

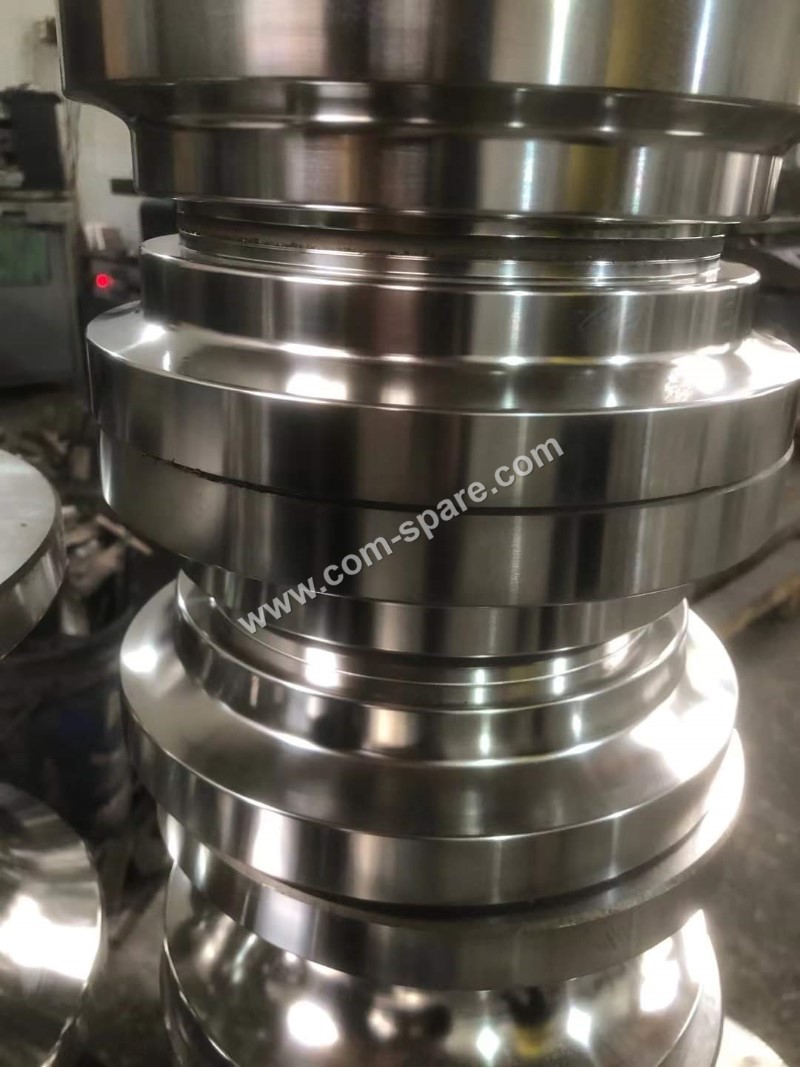

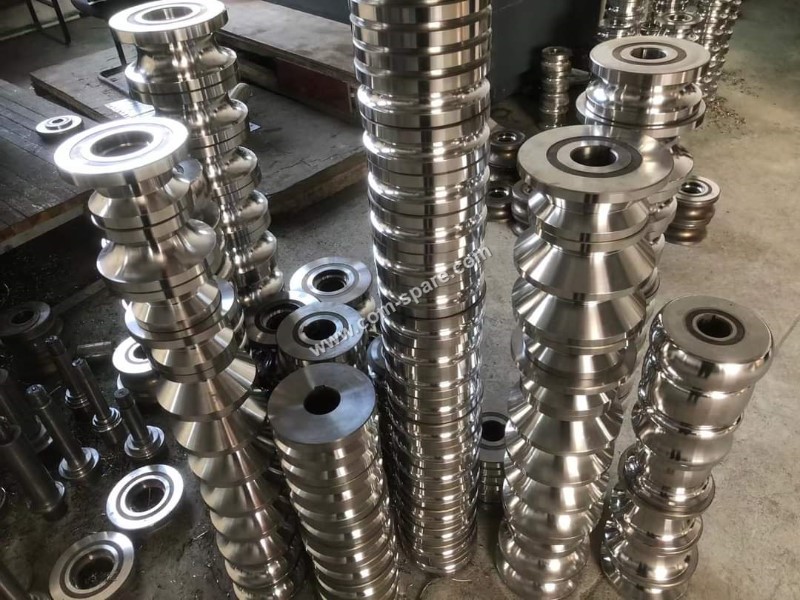

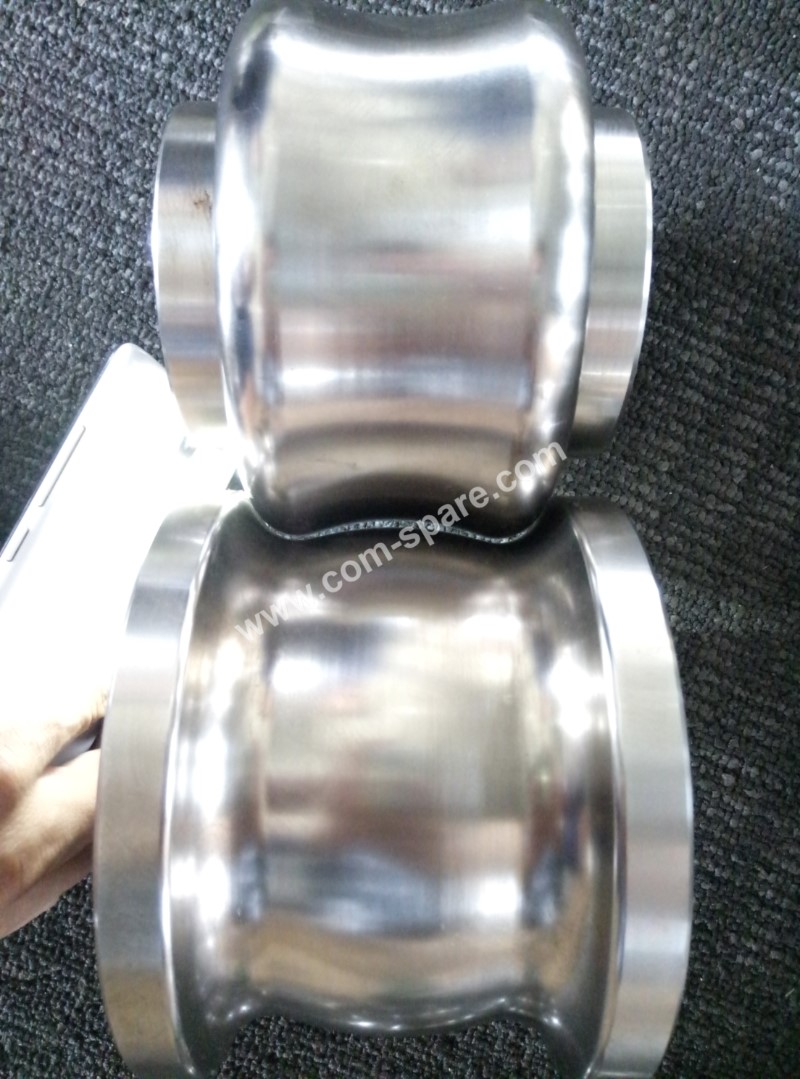

What is the tube mill roll tooling?

The tube mill rolls/roller/tooling's job is to take a continuously coiled flat strip, form it so that the two edges come together, hold the edges in place while they are welded by HF technology, and then size and straighten the finished tubular product to the required specifications, such as rectangle, square, Z, T, L sections and other profiles. With some tube mills running at 120m/min, the tube mill tooling must be able to perform consistently.

Tube Mill Production Line:

1, Forming Part: Breakdown Roll Tooling, Finpass Roll Tooling(SG)

2, SQ Roll Tooling. (Several Types, depends on your SQ stand/device/cassette)

3, Sizing Roll Tooling + TH Roller Tools

The flower arrangement is very important for Tube Mill Roll Tooling Mould Die.
